OPTIVO optical transmission platform TNE1000E

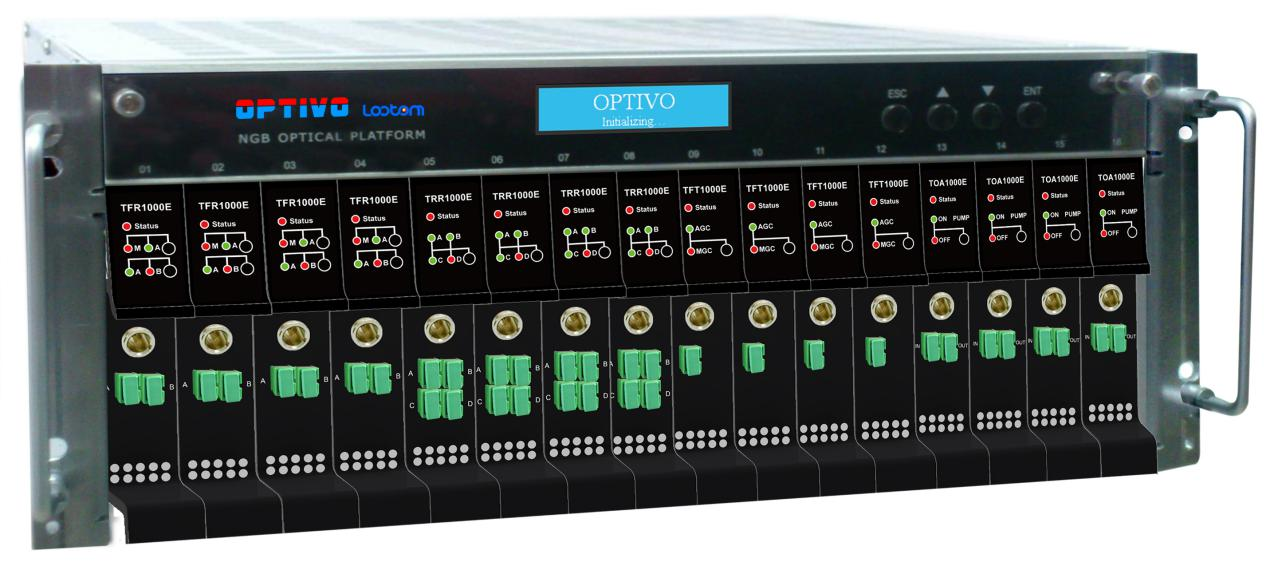

Overview    OPTIVO optical platform is an high density, high reliability, intelligent optical platform, which is specially designed for HFC network transmission center room head-end and sub head-end. 4RU standard rack provides 16 slots for application modules, including forward optical transmitter module(TFT1000E), forward optical receiver module(TFR1000E), reverse optical transmitter module(TRT1000E), reverse optical receiver module(TRR1000E), headend amplifier module(TFA1000E) and 1550 EDFA module(TOA1000E), 1550 direct modulation module(TFT1550E),optical switch module(TOS1000E),RF switch module(TRS1000E). All application modules can be hot-swappable and comply with national standards, SCTE HMS and IEC Network Management System to achieve intelligent management.
   Unique heat dissipation design. platform rack cooling air duct, application module’s heat sinks and cooling fans have been systematically designed to ensure that OPTIVO optical platform has excellent heat dissipation. Each fan’s status and every module’s temperature support monitoring respectively, each fan could be exchanged on line.
   Two hot-backup power supply modules are at the two sides of the rack’s top, will not take up the space of application modules slots. Two hot-backup power supply switch automatically, which greatly improves their reliability.
   Unique slot-oriented design, which makes a much smoother application modules insert and pullout, avoiding the equipment failure caused by inaccurate contraposition or poor contact between application modules and racks.
   Adopting low power consumption design, greatly improves the reliability and working life. All modules(including power supply module) and fans support being monitored in real time, with all kinds of control functions, supporting local and remote monitoring.
   All modules support being upgraded on line smoothly without impact on the normal operation,and do not need be re-adjusted and re-set yet.
   Fully following the national standard, SCTE HMS and IEC network management functions, Ethernet network management interface,which achieves local and remote monitoring. Features High Density
        ● 4RU rack has 16 universal slots which can be installed 16 sets optical transmitter modules，receiving 32 ways downlink optical signals,64 ways uplink optical signals, or a combination of various functional modules.
High Reliability
        ● Two power supply are hot-backup
        ● Low power consumption design
        ● Unique cooling air duct, cooling slot design, imported temperature-controlled fans with excellent heat dissipation
        ● Fiber optic connector and RF connector have been undergone special screening and designed, ensuring the stable and reliable connections with high performance.
High Intelligence
        ● Fully following national standard, SCTE HMS and IEC network management system interface, achieving local or remote intelligent managing the application modules and power supply.
        ● Local LCD display directly real-time displays all application modules and power working status.
Convenience
        ● Unique slot-oriented design, smooth module plug, accurate contraposition with RF connector behind the rack, achieves reliable connection.
        ● All applications and power modules can be hot-plugged.
        ● Optical interface and RF testing port are on the front panel. RF main output ports are on the back panel, and all of them have corresponding test ports.
        ● All application modules have indicators on the front panels to show their operating status
        ● Front panels with fiber care function can enhance the aesthetic extent of equipment and provide the convenient fiber arrangement. Technical Specifications

No.	Item	Unit	Parameters	Remark
1	Dimension	mm	177×410×480
2	Module amount	piece	16
3	Power Module	piece	2（hot backup）
4	Status Monitoring interface		RJ45
5	Operating Temperature	℃	－25～＋55
6	Relative Humidity		20%-55% non-condensation
7	Power	Vac	180-264 50/60Hz	Other power is optional
8	Output Voltage	V	+24
9	Weight	Kg	20	Full al
